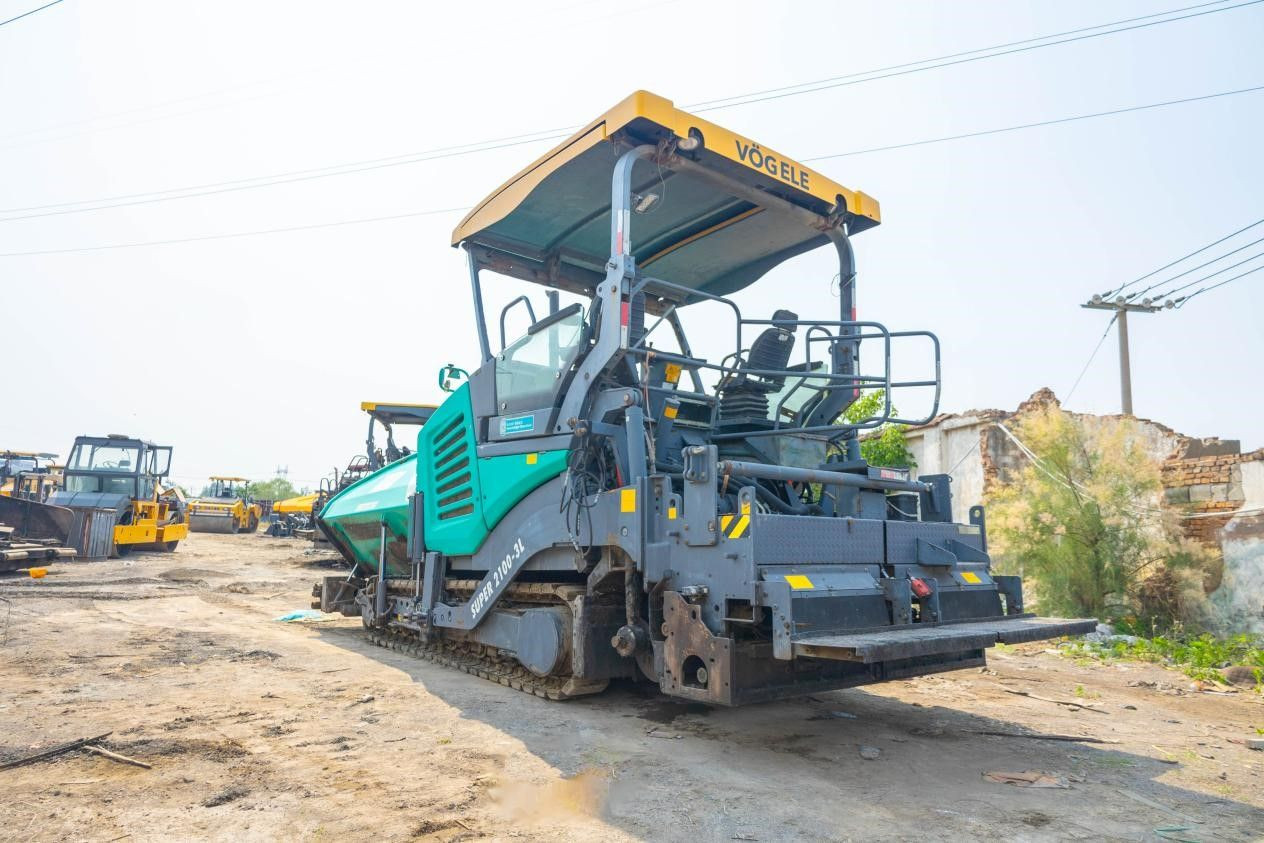

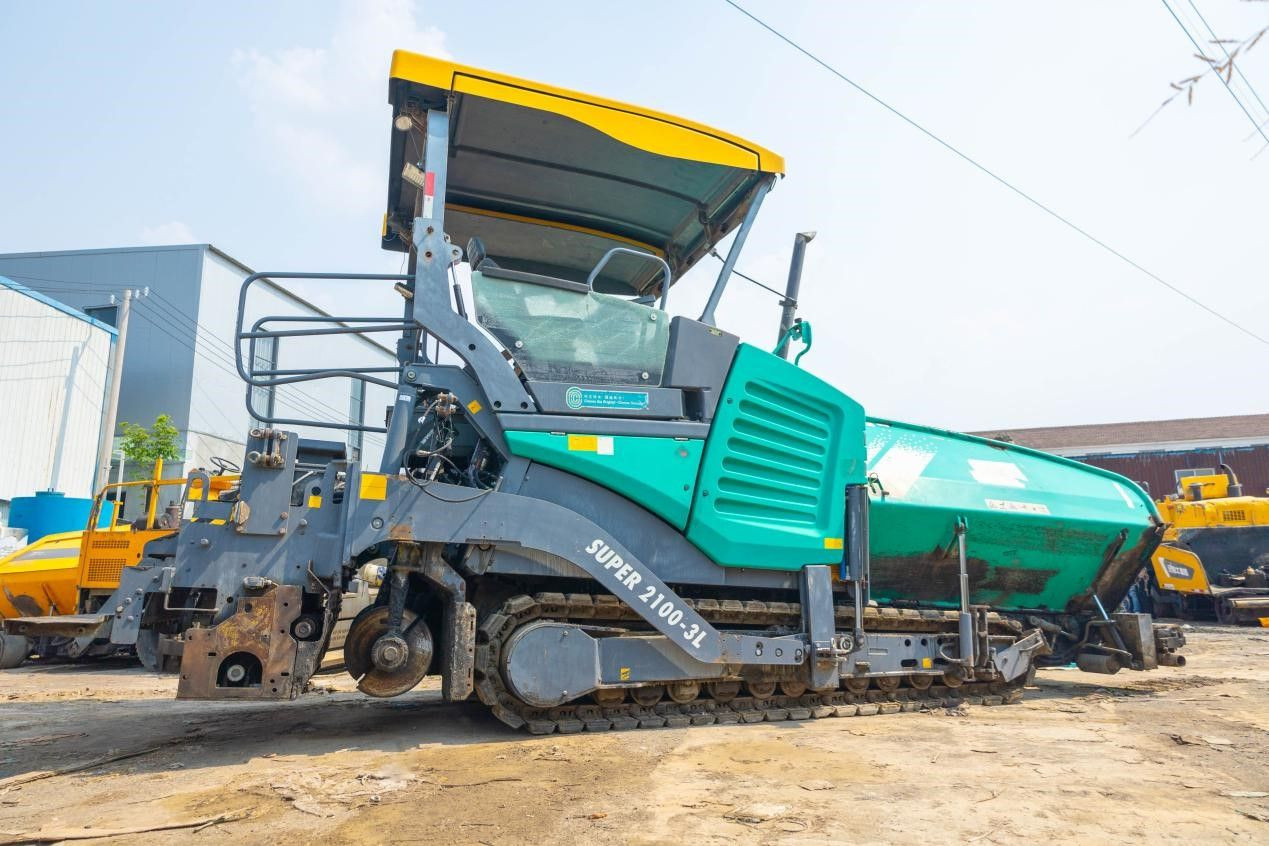

Paving Machine

Manufacturer: German Wirtgen Group
Model: Super 2100-3L
Year of Production: 2014 (Imported to China in 2015)
Working Hours: 7,735 hours

I. Main Features

1. Efficient Paving Capacity

• Paving width: Up to 12 meters (depending on configuration)

• Paving thickness: Up to 30 cm, ideal for medium to large-scale projects

• Fitted with AB250VT screeds to ensure excellent flatness and compaction

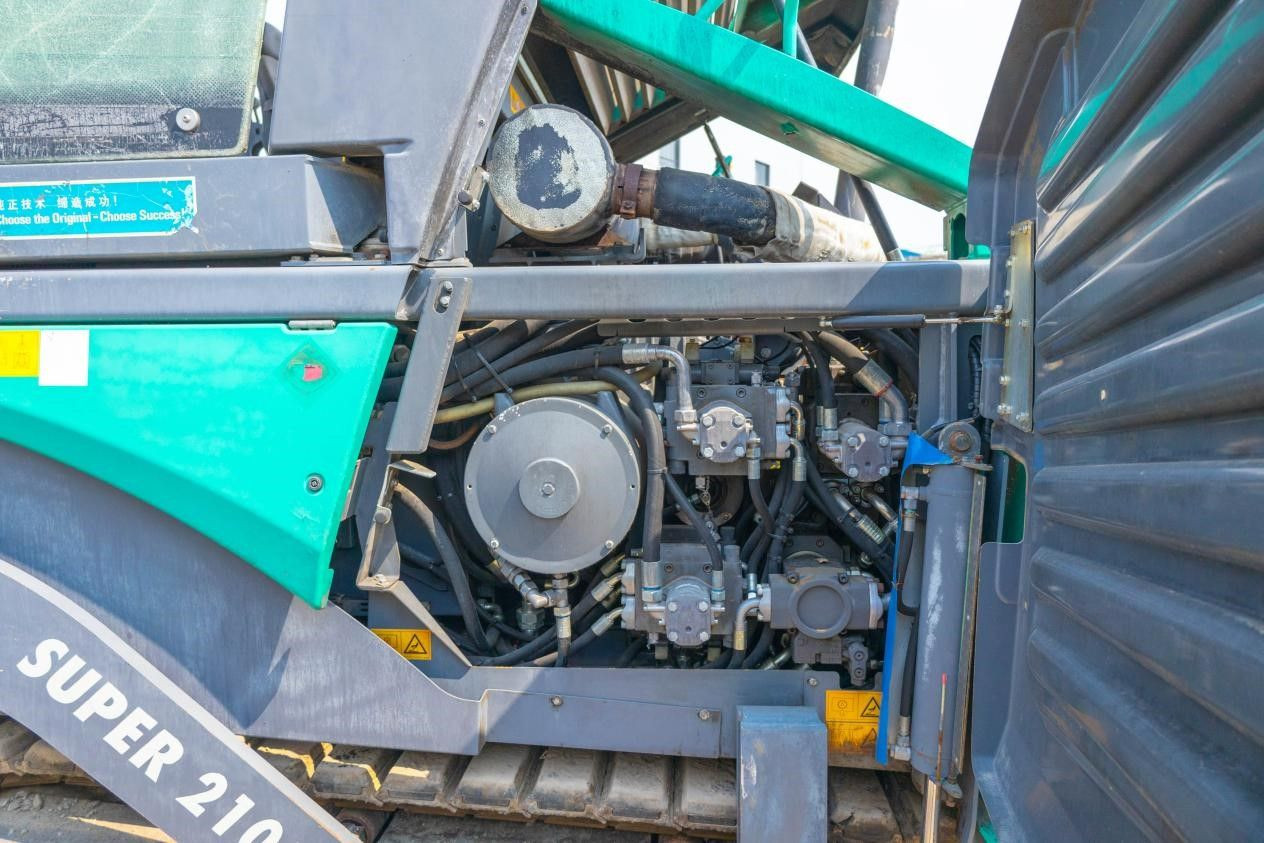

2. Power System

• Equipped with a DEUTZ TCD 6.1 L6 diesel engine

• Delivers high power and fuel efficiency, suitable for demanding paving operations

3. Intelligent Control

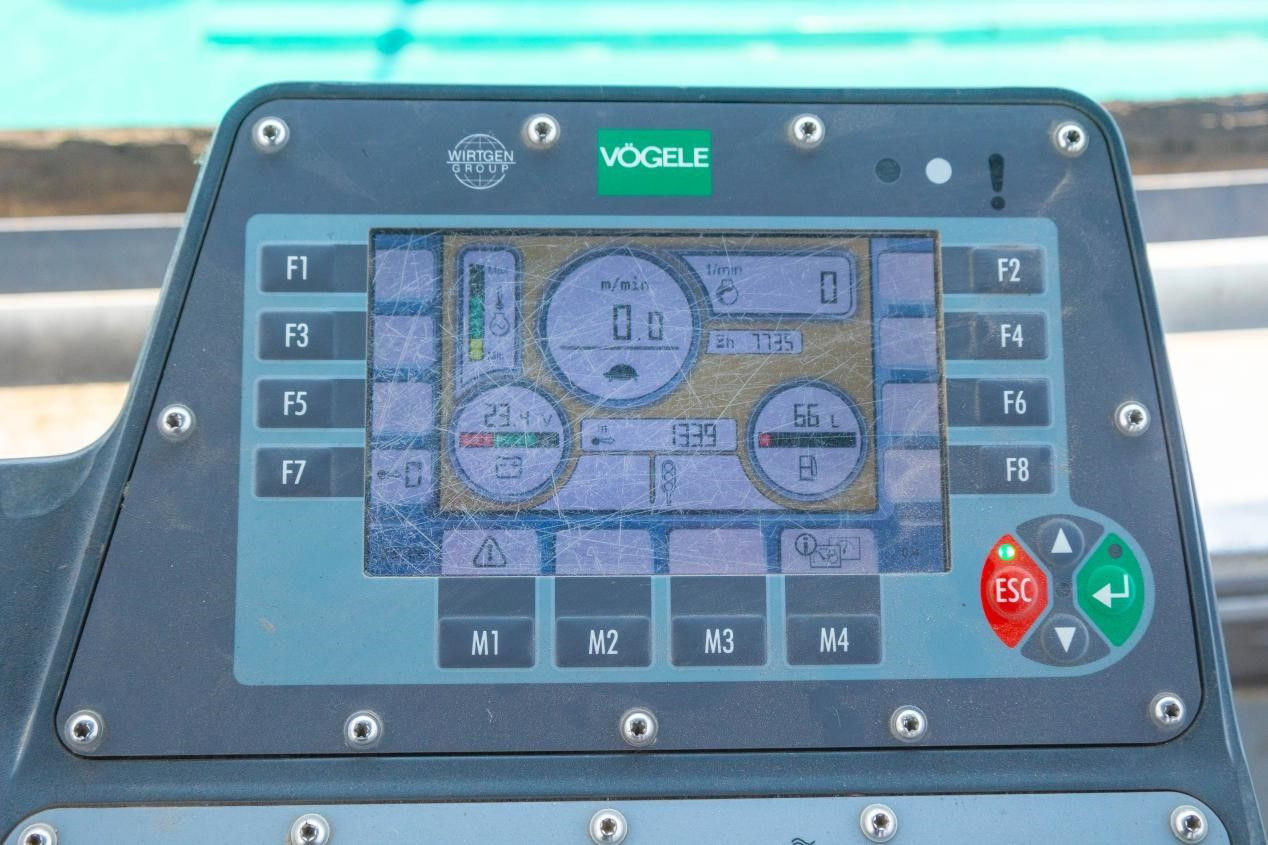

• ErgoPlus Operating System:
  Integrated user-friendly control panel with one-touch operation
  Real-time monitoring of parameters such as temperature, paving speed, and surface flatness

• Automatic Leveling System:
  Adjustable between automatic and manual modes
  Uses a contact leveling system for precision paving

4. Stability and Adaptability

• Crawler-type undercarriage:
  Low ground pressure, ideal for soft or uneven terrain

• Large hopper capacity:
  Approx. 14 tons, minimizes material supply interruptions and enhances paving continuity
